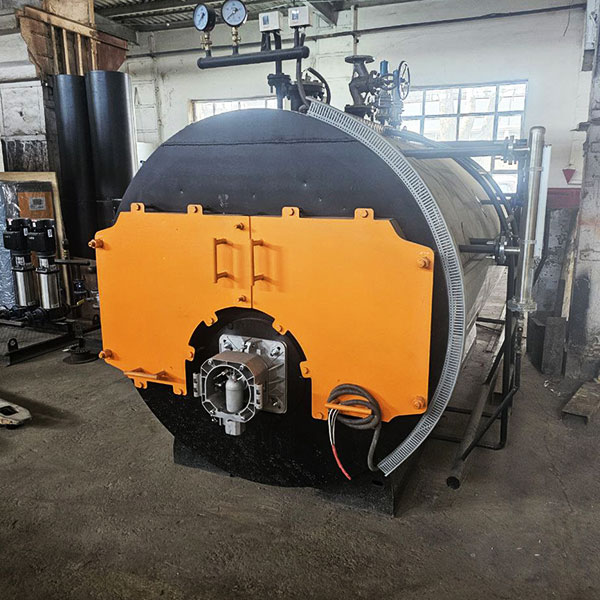

Maksimal bug‘ ishlab chiqarish quvvati: 500 kg/soat
Issiqlik quvvati: 210 kVt
Ishchi bosim: 0,6 bar
To‘yingan bug‘ning maksimal harorati: 165 °S
Nominal gaz sarfi: 25,5 m³/soat
Maksimal bug‘ ishlab chiqarish quvvati: 500 kg/soat
Issiqlik quvvati: 210 kVt
Ishchi bosim: 0,6 bar
To‘yingan bug‘ning maksimal harorati: 165 °S
Nominal gaz sarfi: 25,5 m³/soat
Maksimal bug‘ ishlab chiqarish quvvati: 500 kg/soat
Issiqlik quvvati: 210 kVt
Ishchi bosim: 0,6 bar
To‘yingan bug‘ning maksimal harorati: 165 °S
Nominal gaz sarfi: 25,5 m³/soat
| Qozon modeli
|
Nominal issiqlik bug‘ ishlab chiqarish quvvati (tonna/soat) | Bug‘ning nominal (MPa) | Bug‘ning nominal harorati (°C) | Oziqlantiruvchi suvning nominal harorati (°C) | Termal
samaradorlik (%) |
Maksimal tashish og’irligi (t) | Yoqilg’i iste’moli
Tabiiy gaz (Nm3/4) |
| ГКАП-0.5 | 0.5 | 1.0 | 184 | 20 | >98 | 3.5 | 35.7 |
| ГКАП-1 | 1 | 1.0/1.25 | 184/194 | 20 | >98 | 5.5 | 70.1 |
| ГКАП-2 | 2 | 1.0/1.25 | 184/194 | 20 | >98 | 8 | 140.3 |
| ГКАП-3 | 3 | 1.0/1.25 | 184/194 | 20 | >98 | 10.7 | 212.1 |
| ГКАП-4 | 4 | 1.0/1.25/1.6 | 184/194/204 | 20 | >98 | 11.6 | 283.4 |
| ГКАП-6 | 6 | 1.0/1.25/1.6 | 184/194/204 | 20 | >98 | 17.5 | 424.2 |
| ГКАП-8 | 8 | 1.0/1.25/1.6 | 184/194/204 | 20 | >98 | 22.5 | 566.3 |
| ГКАП-10 | 10 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | >98 | 26.8 | 707.8 |
| ГКАП-15 | 15 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | >98 | 35.2 | 1061.7 |
| ГКАП-20 | 20 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | >98 | 45.5 | 1415.8 |
» Bug‘li gaz qozoni — 500 kg/soat
Nominal quvvati: 1000 kVt (1,28 Gkal/soat) Ishchi bosimi:...
» Bug‘li gaz qozoni — 500 kg/soat
Nominal quvvat 350 kVt Issiqlik samaradorligi % 92,33...
» Bug‘li gaz qozoni — 500 kg/soat
Nominal quvvat 2000 kVt Nominal quvvat 1,72 Gkal/soat...
» Bug‘li gaz qozoni — 500 kg/soat
Nominal quvvat 5000 kVt Rejim harorati 75 -...
